System overview

-Cerberus PACE is a network-based voice alarm and announcement system that complies with the requirements of EN 54-16 and allows for a decentralized and redundant system structure. The avoidance of a ‘Single Point of Failure’ is an important feature of the system design.

-A typical Cerberus PACE system is comprised of a digital audio matrix, amplifiers and operating terminals and microphones. Ethernet switches are used to link these components to a network via copper or fiber-optic cables.

-Cerberus PACE systems are configured in real-time using the system software PACE-Design.

-An EN 54-4-certified power supply guarantees uninterrupted operation and high system availability.

System Applications

Cerberus PACE was designed for the following applications:

• Alarms and evacuation

–    Automatic activation of acoustic alarm and evacuation signals via connected hazard detection system, such as a fire detection system

–    Manual activation of acoustic alarm and evacuation signals by trained personnel

–    Live announcements by trained personnel

–    Playback of previously recorded announcements

• Public address

–    Background music

–    Live announcements, with optional delay function

–    Playback of previously recorded announcements

Cerberus PACE is an integrated system for both applications. It complies with the high standards for voice alarm systems set out in EN 54-16 while also meeting all requirements in terms of audio quality and convenience as you would expect from a traditional announcement system.

Cerberus PACE is scalable and therefore suitable for various application environments and sizes, such as:

• Small-scale applications such as schools, hotels and workshops
• Medium-scale applications such as industrial plants, office blocks or hospitals
• Large-scale applications with extremely stringent performance and availability requirements, such as airports, railway stations, stadiums or large shopping centers

‘Cerberus PACE’ systems can be scaled and expanded easily as required, in line with the installation site and requirements.

Component Application

Digital audio matrix

Cerberus PACE audio matrices process audio signals from the digital network, their own internal audio memory and the analog audio inputs. Analog signals are automatically converted into digital signals for further processing. Each audio signal is assigned to an audio channel. A Cerberus PACE audio matrix can manage up to 255 audio channels.

They are connected to the network via an Ethernet switch.

Ethernet switch

Using an Ethernet switch, the individual Cerberus PACE network components, such as audio matrices and call stations, can be connected to a network of up to 1500 network participants. Each Cerberus PACE network component features two independent network connections.

Combined with an Ethernet switch, these two network connections make it possible to form a fully redundant network.

With the help of an Ethernet switch, this enables the components to form a fully redundant network.

Media converter

The media converter converts a CAT5-based Ethernet section to fiber-optic.

Microphones

Cerberus PACE offers a range of call stations for various applications.

The alarm and business call station PT2001-A1 is designed for the following applications:

• Selecting speaker circuits
• Selecting an audio source
• Transmitting live announcements
• Controlling and monitoring the Cerberus PACE system

Up to four additional button modules can be fitted to extend the desk call station PT2001-A1 to a maximum of 115 buttons.

An optional key switch module enables all or individual call station buttons to be released or locked individually.

Up to three additional button modules can be fitted to extend the desk call station PT2009- A1 to a maximum of 32 buttons.

The network-based fire brigade call station PT2002-A1 is designed for use by the fire brigade or trained security personnel. The alarm and system status can be monitored.

• The integrated hand-held microphone can be used to make live announcements.
• The pre-configured alarm announcement buttons can be used to play stored alarm and evacuation announcements.

Live announcements or stored alarm and evacuation announcements can be played throughout the entire building or in single areas. The system interrupts all other audio outputs throughout the building or in the selected areas as soon as an alarm announcement button or the speak button of the hand-held microphone is pressed.

Operating terminals

The network-based operating terminals offer the following functions:

• Visual indicator for operational readiness
• Visual and acoustic message regarding the alarm and error states in the system
• Manual activation, silencing or resetting of an alarm
• Acknowledging error messages

Power amplifier

Power amplifiers PV200x amplify low-level audio signals to 100 V line voltage. The amplifiers use the latest digital technology for maximum effectiveness.

In the event of emergency power operation, the power amplifiers feature an integrated mains voltage supply and can be operated temporarily with 24 V batteries. If a fault is detected in the mains voltage supply, the power amplifier will automatically switch to the 24 V emergency batteries.

In emergency power operation, the amplifiers boast lower power consumption in standby mode.

The front of the unit is equipped with LEDs to indicate the operating condition as well as sound level controls. The electrical connections are located on the rear.

Each power amplifier is equipped with a maintenance-free fanless cooling system. The devices are also fitted with circuit breakers to provide protection against idling, short-circuit, overheating and power surges.

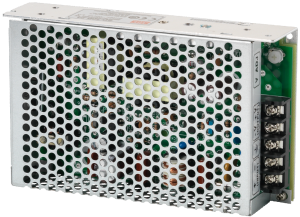

Power supply and batteries

The AC 230 V power supplies provide DC 24 V to all system components, except amplifiers, which have their own ‘AC 230 V’ power supply.

The devices ensure that the Cerberus PACE voice alarm system continues to operate without interruption if the ‘AC 230 V’ line voltage fails by providing a DC 24 V power supply from the emergency batteries.

The power supplies also charge, monitor and protect the power supplies of all emergency batteries. The batteries are charged in accordance with standard EN 54-4 based on their nominal capacity.

The power supplies are equipped with converters, overvoltage protection switches and battery deep discharge protection. The deep discharge protection ensures that the batteries never fully discharge in order to prevent battery damage.

The power supplies are suitable for use in a supply system with a nominal voltage of 230 V/50 Hz.

Fault messages are displayed visually on the front of the unit.

19” cabinets

The 19″ cabinets are a space-saving and safe storage solution for Cerberus PACE system components such as audio matrices, power amplifiers, Ethernet switches and the power supply.

Thanks to their modular design, the cabinets are flexible to use and can accommodate small-scale announcement and evacuation systems, such as those used in schools, as well

as larger-scale, more complex systems for airports or large office buildings.

The cabinets are pre-assembled to meet the installation requirements of Cerberus PACE system components, and provide optimum protection in challenging installation conditions. All cabinets are equipped with an active interior ventilation system that enables the system components to function optimally within the specified temperature ranges. This ensures that the system components continue to function reliably even under high load or at elevated exterior temperatures.

Cabinets with a pivot frame provide good access to the system components even where space is limited, making it easier to perform maintenance and servicing work on the system.

System components

Digital audio matrix (4/4/4) PC2001-A1

• 4 analog inputs and 4 analog outputs
• 4 speaker lines
• 8 digital control inputs and 8 digital control outputs
• 8 analog control inputs
• Ethernet-based 100 Mbit/s network interface
• Serial interface for connecting to internal and external components
• Integrated Micro-SD card reader for alarm messages and music
• Simultaneous transmission of up to 64 digital audio channels in studio quality (48 kHz/24 bit) with a constant latency of 1.33 ms
• Real-time audio transmission: Constant latency 4.6 ms analog-in/analog- out
• Integrated real-time recorder for delayed announcements
• Speaker impedance and line monitoring in alarm mode and non-alarm mode
• Speaker line monitoring via EOL element
• Automatic volume control, compressor and limiter

Digital audio matrix (0/4/4) PC2002-A1

• 4 analog outputs
• 4 speaker lines
• 8 digital control inputs and 8 digital control outputs
• 8 analog control inputs
• Ethernet-based 100 Mbit/s network interface
• Serial interface for connecting to internal and external components
• Integrated Micro-SD card reader for alarm messages and music
• Simultaneous transmission of up to 64 digital audio channels in studio quality (48 kHz/24 bit) with a constant latency of 1.33 ms
• Real-time audio transmission: Constant latency 4.6 ms analog-in/analog- out
• Integrated real-time recorder for delayed announcements
• Speaker impedance and line monitoring in alarm mode and non-alarm mode
• Speaker line monitoring via EOL element
• Automatic volume control, compressor and limiter

Digital audio matrix (4/4/16) PC2003-A1

• 4 analog inputs and 4 analog outputs
• 16 speaker lines
• 8 digital control inputs and 8 digital control outputs
• Ethernet-based 100 Mbit/s network interface
• Serial interface for connecting to internal and external components
• Integrated Micro-SD card reader for alarm messages and music
• Simultaneous transmission of up to 64 digital audio channels in studio quality (48 kHz/24 bit) with a constant latency of 1.33 ms
• Real-time audio transmission: Constant latency 4.6 ms analog-in/analog- out
• Integrated real-time recorder for delayed announcements
• Speaker impedance and line monitoring in alarm mode and non-alarm mode
• Speaker line monitoring via EOL element
• Automatic volume control, compressor and limiter

Ethernet switch (2×4/2) PN2001-A1

• Two separate Ethernet switches in a single housing
• 2x 4 copper ports (RJ45, 10/100/1000Base-T)
• 2x fiber-optic ports (duplex SC)
• 19”/1 HU housing
• Enables the user to create a fully duplicated network
• Operated on DC 24 V using EN 54-4-certified power supply units

Planet IGS-10020MT Switch PN2005-A1

• 8x copper ports (RJ45, 10/100/1000Base-T)
• 2x SFP interfaces (100/1000Base-X dual-mode with auto-detection) to incorporate a fiber-optic section (fiber-optic adapter required)
• Slimline IP30 metal housing for demanding industrial environments
• -40 to +75 °C operating temperature
• DIN rail and wall mounting model
• Redundant power supply with reverse polarity protection
• Supports Ethernet ESD protection (<DC 6000 V)
• Supports EFT protection for mains connection (<DC 6000 V)
• Enables the user to create a stable, redundant network
• Supports ‘Spanning Tree Protocol’ (STP) and ‘Rapid Spanning Tree Protocol’ (RSTP) for clear identification of network paths in a redundant network
• Supports ‘Ethernet Ring Protection Switching’ (ERPS) for ring-shaped network structures to enable rapid switching to redundant network paths in the event of a fault
• Supports ‘Virtual Local Area Network’ (VLAN) to divide the physical network into logical sub-networks to increase network performance and security

Planet IGT-805AT Converter PN2007-A1

• 1x copper ports (RJ45, 10/100/1000Base-T with auto MDI/MDI-X function)
• 1x SFP interfaces (100/1000Base-X dual-mode with auto-detection) to incorporate a fiber-optic section (fiber-optic adapter required)
• Slimline IP30 metal housing for demanding industrial environments
• -40 to +75 °C operating temperature
• DIN rail and wall mounting model
• Redundant power supply with reverse polarity protection
• Supports Ethernet ESD protection (<DC 6000 V)
• Supports EFT protection for mains connection (<DC 6000 V)

Planet MGB-LX FOI Adapter PNA2002-A1

• SM transceiver module for fiber-optic data transfer
• SFP form factor for insertion into an SFP interface
• Can be inserted during operation
• Conforms to SFA Multisource Agreement (MSA)
• Duplex LC port
• Max. cable length: 10 km

Planet MGB-SX FOI Adapter PNA2003-A1

• MM transceiver module for fiber-optic data transfer
• SFP form factor for insertion into an SFP interface
• Can be inserted during operation
• Conforms to SFA Multisource Agreement (MSA)
• Duplex LC port
• Max. cable length: 550 m

D-Link DEM-211 FOI Adapter PNA2004-A1

• MM transceiver module for fiber-optic data transfer
• SFP form factor for insertion into an SFP interface
• Can be inserted during operation
• Conforms to SFA Multisource Agreement (MSA)
• Duplex LC port
• Max. cable length: 2 km

Fire brigade call stat. (AT) PT2002-A1

• Alarm call station with standard-compliant housing and control panel
• Full network participant in a Cerberus PACE system
• 7 standardized and pre-configured buttons
• 3 standardized and pre-configured displays
• Removable hand-held microphone with speak button
• Microphone and line monitoring
• Real-time audio transmission with constant latency: 4.6 ms analog- in/analog-out
• Integrated real-time recorder for delayed announcements
• Integrated industrial Micro-SD card reader/writer with max. 2 GB card capacity for alarm messages and music
• Recording capacity: 256 files with a total duration of approx. 3 hours
• Provision of alarm announcements, alarm tones, and music
• 2x Ethernet LAN interfaces for connection to PACE-Net

Desk call stat. (19 buttons) PT2001-A1

• Call station with electret condenser microphone and gooseneck
• Full network participant in a Cerberus PACE system
• 2-line text display
• 19 freely configurable buttons with status indicator
• Insertable labels for custom button identification
• Monitored microphone
• Integrated speaker
• 1x additional NF audio input (line/mic) and 1x additional NF audio output
• 4x digital inputs, 6x digital outputs
• Live speech/real-time audio transmission and integrated real-time recorder for delayed announcements
• Integrated Micro-SD card reader/writer with max. 2 GB card capacity for alarm messages and music
• Recording capacity: 256 files with a total duration of approx. 3 hours
• Provision of alarm announcements, alarm tones, and music
• 2x Ethernet LAN interfaces for connection to PACE-Net
• Can be extended using button modules with status indicator and key switches

Desk call station extension (24 buttons) PTO2001-A1

• Optional button extension for the desk call station PT2001-A1
• 24 freely configurable buttons
• Up to 4x button extensions per desk call station PT2001-A1, offering a total of 115 buttons
• Insertable labels for custom button identification

Desk call station extension (Kaba) PTO2002-A1

• Call station extension for PT2001-A1 with key switch (Kaba)
• For enabling call station operation

Desk call station extension (Nordic) PTO2003-A1

• Call station extension for PT2001-A1 with key switch (Nordic)
• For enabling call station operation

Desk call station (analog, 3+1) PT2008-A1*

• Call station with 3 configurable zone buttons plus speak button
• Electret condenser microphone with gooseneck
• Symmetrical audio transmission
• Audio output 0 dB (line volume)
• Control signals for zones 1-3 and ‘Speak’
• Connection to control panel via CAT5 cable or above (max. 150 m) and RJ45 connector
• Supplied adapter module for connection to control panel
• Insertable labels for custom button identification
• Robust sheet steel housing
• The desk call station ‘PT2008-A1’ does not have approval in accordance with EN 54-16.

Desk call station (RS485, 8+1) PT2009-A1

• Call station with 8 configurable, illuminated zone buttons plus speak button
• Electret condenser microphone with gooseneck
• Symmetrical audio transmission, analog
• RS485 data transfer (PACE-Bus)
• Audio output 0 dB (line volume)
• Connection to control panel via CAT 5 cable or above (max. 500 m) and RJ45 connector
• Up to eight call stations can be configured in a cascade ‘daisy chain’
• Adapter module PTO2008-A1 for connection to the control panel
• Option to add up to three extension modules, each with 8 zone buttons
• Integrated audio amplifier (1 watt) and speaker
• Addressable via 8-way SIP switch in device
• Insertable labels for custom button identification
• Robust sheet steel housing

Desk call station extension (RS485, 8) PTO2006-A1

• Optional button extension for desk call station PT2009-A1
• Up to 3 button extensions possible for desk call station PT2009-A1, offering a total of 32 buttons
• 8 configurable, illuminated zone buttons
• Insertable labels for custom button identification

ITEC SPM-DM microphone DCS PTO2004-A1

• Dynamic gooseneck microphone
• Supercardioid characteristics
• Excellent suppression of background noise
• Highly dynamic performance and wide frequency band with low distortion
• XLR connection

Mounting kit DCS (19″/5HU) PTO2005-A1

• 19″ mounting kit for call stations
• For mounting call stations in a 19″ cabinet
• 5HU

System state indicator (19″) PT2004-A1

• EN 54-16-compliant indicator panel for visual and acoustic status messages
• Color-coded visual indicators: Operation, fault, and alarm

–    Operation: Green

–    Fault: Yellow

–    Alarm: Red

–    Voice alarm: Red

• Fault warning with acoustic warning signal
• Button for acknowledging acoustic warning
• Potential-free fault contact
• Design: 19″, 1 HU

Alarm control panel (19″) PT2005-A1

• Activation of voice alarms

–    Activate: Red LED button

–    Reset: Black button

–    Silence: Green LED button

• Display of system status
• Button to acknowledge faults: Black
• Pre-made cut-out for optional service socket
• Design: 19″, 1 HU

System status display (door) PT2007-A1

• EN 54-16-compliant indicator panel for visual and acoustic status messages
• Color-coded visual indicators: Operation, fault, and alarm

–    Operation: Green

–    Fault: Yellow

–    Alarm: Red

–    Voice alarm: Red

• Fault warning with acoustic warning signal
• Button for acknowledging acoustic warning
• Potential-free fault contact
• Design: Open frame

Remote control panel PT2006-A1

• Buttons and display for selecting channels
• Sound level settings
• Connection of up to 16 remote control panels to the digital audio matrices PC2001-A1, PC2002-A1, or PC2003-A1 possible via the RS485 interface
• Supplied with installation frame
• For installation in recessed box
• 4-pin cables for RS485 interface and power supply

Power amplifiers (2x 250 W) PV2001-A1

• 10 W in standby mode
• 19”
• Maintenance-free fanless cooling system
• Protected against idling, short-circuit, overheating, DC

Inputs

• DC 24 V power supply
• AC 230 V power supply
• 2x analog audio inputs
• 2x control inputs
• 2x pilot reference audio inputs

Outputs

• 2x 100 V/50 V power outputs, 250 W each
• 1x 100 V power output, 500 W
• 4x status indicator contacts: AC mains voltage, DC power supply, output A, output B

Power amplifiers (4x 150 W) PV2003-A1

• 10 W in standby mode
• 19”
• Maintenance-free fanless cooling system
• Protected against idling, short-circuit, overheating, DC

Inputs

• DC 24 V power supply
• AC 230 V power supply
• 2x analog bridge inputs
• 2x control inputs
• 2x pilot reference audio inputs

Outputs

• 4x 100 V/50 V power outputs, 150 W each, or
• 2x 100 V power outputs, 300 W each
• 4x status indicator contacts: AC mains voltage, DC power supply, output A/B, output C/D
• 2x bridge contacts

Optional

• RS485 for cascading switch-on delay (input and output)
• Address switch

Power amplifiers (1x 250 W) PV2007-A1

• 10 W in standby mode
• 19”
• Maintenance-free fanless cooling system
• Protected against idling, short-circuit, overheating, DC

Inputs

• DC 24 V power supply
• AC 230 V power supply
• 1x analog audio input
• 1x pilot reference audio input
• 1x analog bridge input

Outputs

• 100 V/50 V power output
• 3x status indicator contacts: AC mains voltage, DC power supply, output A

Merawex ZDSO-400-DR2 320 Ah PP2003-A1

• EN 54-4-certified
• Charging, monitoring and protection of emergency power batteries
• Power supplied to all system components via DC 24 V
• Emergency power supply to all system components
• Input voltage 230 V/50 Hz
• Max. capacity of emergency batteries: 320 Ah

Merawex ZSP135 DR-7A-3 40 Ah PP2004-A1

• EN 54-4-certified
• Metal wall cabinet
• Lockable
• LED indicator for operational readiness
• Internal temperature sensor
• Remote monitoring of power supply and batteries via contact
• Internal low-voltage fuse
• Charging, monitoring and protection of emergency power batteries
• Power supplied to all system components via DC 24 V
• Emergency power supply to all system components
• Input voltage 230 V/50 Hz
• Max. capacity of emergency batteries: 40 Ah

Merawex MXL 40-12 Battery PA2006-A1

• Maintenance free lead battery
• Capacitance: 40 Ah
• Voltage: 12 V
• Rechargeable
• Gas-tight
• Acid-free

Merawex MXL 65-12 Battery PA2007-A1

• Maintenance free lead battery
• Capacitance: 65 Ah
• Voltage: 12 V
• Rechargeable
• Gas-tight
• Acid-free

Merawex MXL 100-12 FT Batt. PA2008-A1

• Maintenance free lead battery
• Capacitance: 100 Ah
• Voltage: 12 V
• Rechargeable
• Gas-tight
• Acid-free

Merawex MXL 150-12 FT Batt. PA2009-A1

• Maintenance free lead battery
• Capacitance: 150 Ah
• Voltage: 12 V
• Rechargeable
• Gas-tight
• Acid-free

Rittal (40HU, swivel, 80×80) PH2003-A1

• 40 HU
• 19″ heavy-duty swivel frame with gliding rails
• External dimensions: 800 x 800 mm
• Active ventilation
• Aluminum viewing door at front; lockable
• Sheet steel back door; lockable
• Roof panel with cable entry points
• Base with four corner pieces and corresponding orifices
• Circuit diagram holder, A4

Rittal (22HU, swivel, 80×80) PH2004-A1

• 22 HU
• 19″ swivel frame with gliding rails
• External dimensions: 800 x 800 mm
• Active ventilation
• Aluminum viewing door at front; lockable
• Sheet steel back door; lockable
• Roof panel with cable entry points
• Base with four corner pieces and corresponding orifices
• Circuit diagram holder, A4

Rittal (42HU, fix, 80×80) PH2005-A1

• 42 HU
• 19″ frame, fixed, with profile rails
• External dimensions: 800 x 800 mm
• Active ventilation
• Aluminum viewing door at front; lockable
• Sheet steel back door; lockable
• Roof panel with cable entry points
• Base with four corner pieces and corresponding orifices
• Circuit diagram holder, A4

Rittal (24HU, fix, 80×80) PH2006-A1

• 24 HU
• 19″ frame, fixed, with profile rails
• External dimensions: 800 x 800 mm
• Active ventilation
• Aluminum viewing door at front; lockable
• Sheet steel back door; lockable
• Roof panel with cable entry points
• Base with four corner pieces and corresponding orifices
• Circuit diagram holder, A4

ERA (40HU, swivel, 80×80) PH2007-A1

• 40 HU
• 19″ swivel frame
• External dimensions: 800 x 800 mm
• Integrated base

ERA (23HU, swivel, 80×80) PH2008-A1

•  23 HU
• 19″ swivel frame
• External dimensions: 800 x 800 mm
• Integrated base

ERA (43HU, fix, 80×80) PH2009-A1

• 43 HU
• 19″ frame; fixed
• External dimensions: 800 x 800 mm
• Integrated base

ERA (43HU, fix, 60×60) PH2011-A1

• 43 HU
• 19″ frame; fixed
• External dimensions: 600 x 600 mm
• Integrated base

ERA (26HU, fix, 80×80) PH2010-A1

• 26 HU
• 19″ frame; fixed
• External dimensions: 800 x 800 mm
• Integrated base

ERA (26HU, fix, 60×60) PH2012-A1

•  26 HU
• 19″ frame; fixed
• External dimensions: 600 x 600 mm
• Integrated base

ATP AF2GUD-2*** SD 2 GB PCA2002-A1

• 2 GB Micro SD memory card for Cerberus PACE
• Up to 256 audio files with a total duration of 3 h
• For industrial applications
• Water-tight
• Dust-tight
• Guaranteed data storage: >10 years

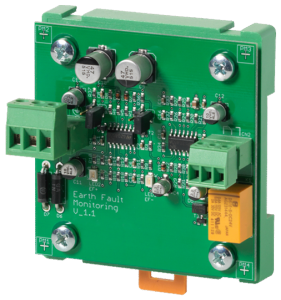

Ground fault monit. (24V) PCA2001-A1

• Monitoring of the DC 24 V line for ground faults
• Used with remote system components (Required when the 24 V line exits the system cabinet to supply energy to components such as the fire brigade microphone)
• General message relating to fault to relay changeover contact (Fault/Okay)
• Fault indicated via LED on module
• Switch to a lower sensitivity of 10 kOhm via jumper setting
• Installation in a system cabinet (TS35 DIN-rail-ready)
• All connections on plug-in terminal blocks

MeanWell SD-50C-24 DC/DC PCA2011-A1

• Controlled DC 24 V output voltage, electrically isolated
• Internal 24 V energy supply protected against short-circuits on the external 24 V supply line outside the system cabinet
• Protected against short-circuit, overloading and overvoltage
• DC 1500 V I/O isolation
• 100 % full load burn-in test
• Fixed switch frequency of 83 KHz

IN/OUT digital extension (16) PCIO2001-A1

• For use with the digital audio matrices PC2001-A1, PC2002-A2 and PC2003-A1
• Communication via RS485 or RS232 interfaces
• Extends the PC2001-A1, PC2002-A1 and PC2003-A1 digital audio matrices by an additional 16 digital outputs
• Outputs are electrically isolated
• Extends the PC2001-A1, PC2002-A1 and PC2003-A1 digital audio matrices by an additional 16 digital inputs
• Extends a device by an additional 8 analog inputs

OUT extension relay (8) PCO2001-A1

• Digital output extension for the audio matrices PC2001-A1, PC2002-A1, and PC2003-A1
• The assembly includes eight relays with changeover contact
• The maximum permissible switching current for each changeover contact is 7 A for AC or DC 24 V
• Communication via RS232 interface

Automatic volume control microphone PCA2007-A1

• Supports automatic volume control to suit levels of background noise
• Power supply via phantom voltage through automatic volume control module PCA2008-A1 (no separate power supply required)
• Electret microphone in an IP54 protective housing
• For use with the digital audio matrices PC2001-A1, PC2002-A1 and PC2003-A1
• Symmetrical output: Controllable microphone/line level
• Microphone or line level (high resistance to faults)
• Simple mounting and installation
• Connection to 3-pin terminal
• Linear frequency band of 100 Hz to 10 kHz

Automatic volume control module PCA2008-A1

• Supports automatic volume control to suit levels of background noise
• Connection of up to four PCA2007-A1 microphones
• Supports microphone and line level
• Supplies the connected microphones with DC 12 V phantom voltage
• Installation in the system cabinet (TS35 DIN-rail-ready)
• All connections on plug-in terminal blocks
• Fault message via relay changeover contact (Fault/Okay)

EOL3 (active) PCA2004-A1

• For monitoring the speaker line for open lines and short-circuits
• Monitoring in accordance with EN 54-16
• Addressable: up to 16 different addresses can be configured
• Addressing compatible with any structure with up to 16 line ends, in addition to the stub line
• Reliable cable break detection in any branch of a speaker line
• Suitable for 100 V, 70 V, 50 V and 25 V speaker systems
• No other wiring needed; works with standard two-wire speaker line
• No need to route line back to control panel

Loop isolator (100 V) PCA2005-A1

• Isolating element for use in a 100 V speaker line
• Rapidly detects and isolates short-circuits affecting the 100 V speaker line
• Monitors the speaker connected to the loop isolator for open lines and short-circuits
• Suitable for 100 V, 70 V, 50 V and 25 V speaker systems
• Two-pole standard lines used as cables for the speaker loop
• Optical display of isolator status (internal or external LED)

Spelsberg i 16-L Li Box PCA2013-A1

• Housing for loop isolator (100 V) PCA2005-A1
• IP55

Loop isolator LED PCA2012-A1

• External LED
• Status indicator for loop isolator (100 V) PCA2005-A1

Repeater (CAT5) PNA2007-A1

• Extension of 100 Mbit/sec Ethernet line by 100 m

For more information: https://new.siemens.com/global/en/products/buildings/fire-safety/evacuation/voice-alarm.html
